LY-BP4136 Male 3 pins 16A Waterproof Blue Industrial plugs for Data centers IP44
Catalogue
|
Part number |
Voltage |
Color |
Male/Female Grounding Contact Position |
|
LY-BP4134 |
100-130V |
Yellow |
4H |
|
LY-BP4136 |
200-250V |
Blue |
6H |
|
LY-BP4139 |
380-415V |
Red |
9H |
|
LY-BP4137 |
480-500V |
Black |
7H |
|
LY-BP4132 |
>50V,301-500Hz |
Green |
2H |
|
LY-BP4133 |
>50-250VDC |
Gray |
3H |
|
LY-BP4138 |
>250VDC |
Gray |
8H |
|
LY-BP41310 |
>50V,100-300Hz |
Green |
10H |
|
LY-BP41312 |
由于来自隔离变压器的电源，50/60Hz |
Gray |
12H |
Specification
|
Product serie |
plugs IP44 |
|
Amperage |
16A |
|
Number of Pins |
3 |
|
IP Rating |
IP44 |
|
Wire Size |
1.0-2.5mm2 |
|
Connection method |
Screw connection |
|
Nominal frequency |
50-60 Hz |
|
Housing Material |
Plastic (PA) |
|
Certification mark |
CCEform |
|

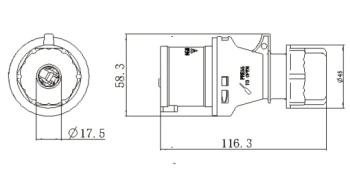

Size |
|
Overview
An industrial plug is a rugged device that connects industrial equipment to power sources. It’s built to withstand harsh conditions, with features like secure locking, high protection ratings (e.g., IP44/IP67), and durability for reliable use in tough industrial settings.
Plugs Features
✔Complies with GB11918-11919-2001 (equivalent to IEC60309-1/2) standards
✔Shell color indicates rated voltage, and dimensions are designed based on current and voltage to prevent mis-insertion
✔Grounding sleeve is longer, elastic band ensures good contact, and features a lock-off device
✔Designed for easy installation for long-term use
✔Engineering plastic housing is drop-resistant and impact-resistant, easy to plug in and out
Application
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
Our Workshop Overview
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
How to instructions
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
