OEM Part Number |
DTV06-18SB |
|
OEM Series |
DTV SERIES |
|
MinMax Part Number |
/ |
|
MinMax Family |
|
|
Connection Type |
Wire to Wire |
|
Number of Positions |
18 |
|
Number of Rows |
3 |
|
Hybrid |
No |
|
Contact Tab Size (mm) |
2.23-3.68mm |
|
Male/Female |
Female |
|
Sealable |
Yes |
|
Body Color |
Black |
|
Housing Material |
PEI |
|
Nominal Voltage Architecture (V) |
12/24 |
|
Operating Temperature Range |
–55℃~125℃ |
|
Certification |
ISO9001, RoHS, REACH, TS16949 |

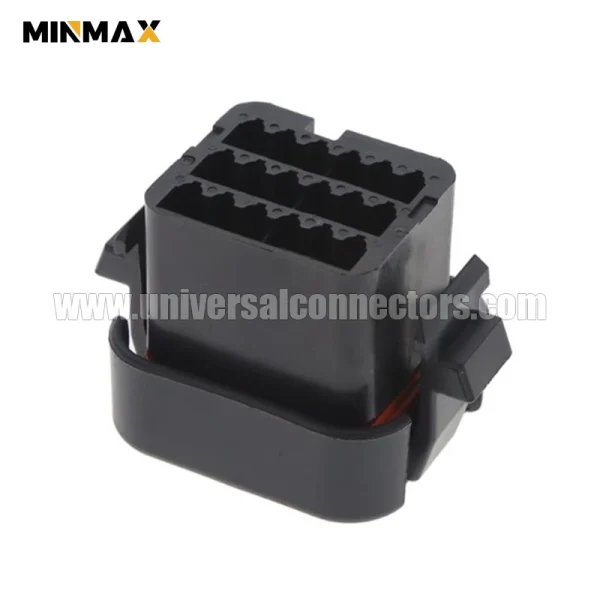

DEUTSCH DTV Series connectors offer the same time tested reliability and performance as the DT Series, with the added flexibility of an 18 cavity flanged design.
✔Ultra-Compact Design
✔High Performance Sealing
✔Reliable in Harsh Environments
✔Simple & Efficient Termination
✔Robust Metal Coupling
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
