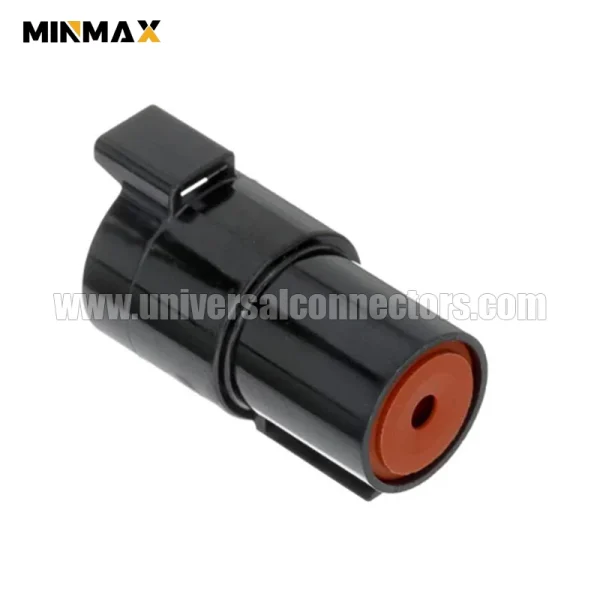

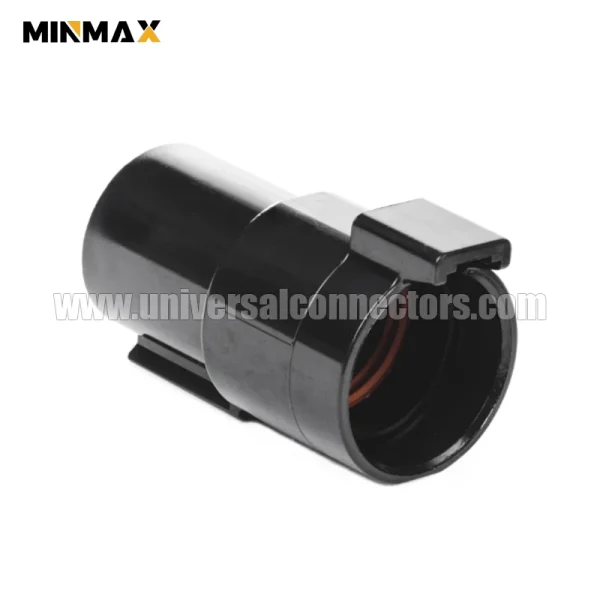

DTHD04-1-8P Male 1 Pin Blade Auto Connector
|
OEM Part Number |
DTHD04-1-8P |
|
OEM Series |
DTHD |
|
MinMax Part Number |
1150000320 |
|
Connection Type |
Wire to Wire, Wire to Board |
|
Number of Positions |
1 |
|
Number of Rows |
1 |
|
Hybrid |
Yes |
|
Contact Tab Size |
8AWG |
|
Male/Female |
Male |
|
Sealable |
Yes |
|
Body Color |
Black |
|
Housing Material |
Plastic: Flame-retardant nylon Ring plug: Silicone |
|
Nominal Voltage Architecture (V) |
12 | 24 | 48 |
|
Operating Temperature Range |
-55 – 125 °C |
|
Certification |
ISO9001, RoHS, REACH, TS16949 |
Overview
DTHD connectors stand out as a premium solution for secure, high-performance electrical connections. Engineered for durability and precision, our connectors ensure seamless signal transmission and power delivery in even the most demanding environments.
DTHD Features
✔ Robust Design – Built to withstand vibrations, extreme temperatures, and harsh conditions.
✔ High Reliability – Superior contact technology minimizes resistance and ensures stable performance.
✔ Wide Compatibility – Supports various automotive applications, including EVs, ADAS, infotainment, and more.
✔ Easy Installation – User-friendly design for efficient assembly and maintenance.
Application
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
Our Workshop Overview
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
How to instructions
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
