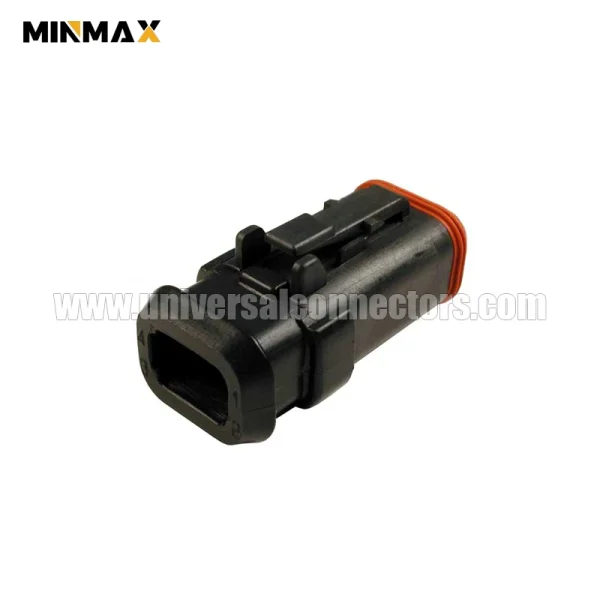

DT06-4S-EP11 Female 4 Pins Sealable Black Housing map sensor DT connector

OEM Part Number	DT06-4S-EP11
OEM Series	DT
MinMax Part Number	1150000459
MinMax Family	MCS076
Connection Type	Wire to Wire, Wire to Board
Number of Positions	004
Number of Rows	2
Hybrid	No
Contact Tab Size (mm)	1.5mm
Male/Female	Female
Sealable	Yes
Body Color	Gray
Housing Material	PA66
Nominal Voltage Architecture (V)	12，14
Operating Temperature Range	-40℃~120℃
Certification	ISO9001, RoHS, REACH, TS16949

Overview

DT series provide reliable waterproof connections for cable-to-cable applications
across various environments, including engines, transmissions, chassis, under the hood, and within the cab.

Deutsch Features

✔ In line, flange, or PCB mount
✔ Multiple Pin Configurations:2.3,4.6,8 and 12 cavity
✔ High Current Capacity: 13A per contact with 16-gauge wires
✔ Easy Installation:reduced assembly time
✔ Environmental Seal:will handle extreme applications

Application

on the engine

On the Engine

on the transmissions

On the transmission

automotive under hood

Automotive Under the Hood

on the chassis

On the Chassis

in the cab

In the Cab

in the heavy duty

in the heavy duty

Our Workshop Overview

edm mirror processing

EDM Mirror Processing

edm parts

EDM Parts

slow feeding wire cut machine

Slow-feeding wire cut machine

cnc machine

CNC Machine

plastic injection machine

Plastic Injection Machine

automatic production line

Automatic production Line

How to instructions

dt04 3p male 3 pins gray dt auto connector

Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed

dt04 3p male 3 pins gray dt auto connector

step 2 Crimping terminal and matched connector

dt04 3p male 3 pins gray dt auto connector

Step 3 Insert the terminal to the connectors

dt04 3p male 3 pins gray dt auto connector

Step 4 finished the connecting.
