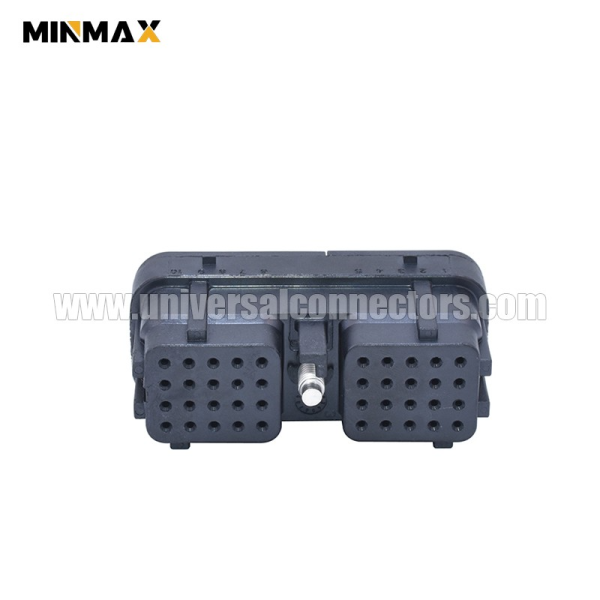

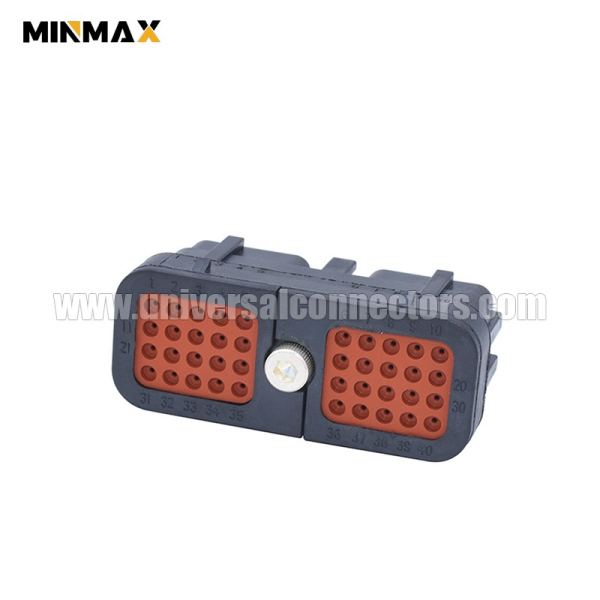

DRC26-40SB Female 40 Pins Automotive Connector,40 Position Housing,Wire-to-Wire
|
OEM Part Number |
DRC26-40SB |
|
OEM Series |
DRC SERIES |
|
MinMax Part Number |
1150001078 |
|
MinMax Family |
|
|
Connection Type |
Wire to Wire |
|
Number of Positions |
040 |
|
Number of Rows |
4 |
|
Hybrid |
No |
|
Contact Tab Size (mm) |
1.5mm |
|
Male/Female |
Female |
|
Sealable |
Yes |
|
Body Color |
Black |
|
Housing Material |
PA GF |
|
Nominal Voltage Architecture (V) |
24,48 |
|
Operating Temperature Range |
–55℃~125℃ |
|
Certification |
ISO9001, RoHS, REACH, TS16949 |
Overview
DRC series provide reliable waterproof connections for cable-to-cable applications across various environments, including engines, transmissions, chassis, under the hood, and within the cab.
Deutsch Features
✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2 and 4 cavity
✔High Current Capacity: 25A per contact with 12-gauge wires
✔Easy Installation:reduced assembly time
✔Environmental Seal:will handle extreme applications
Application
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
