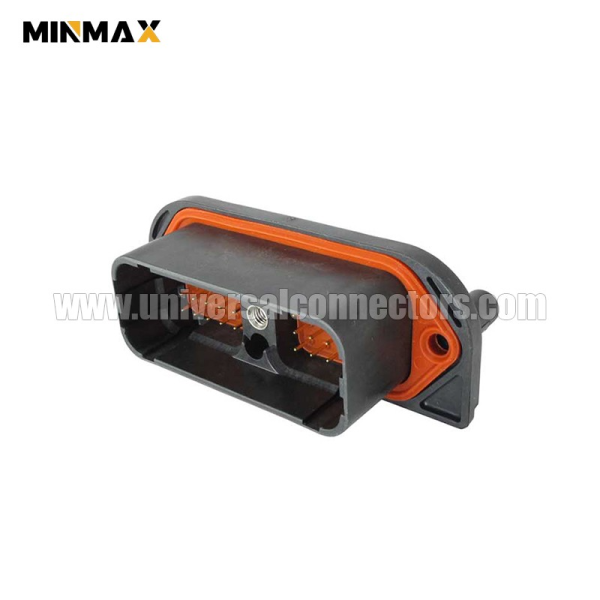

DRC23-40PA-N012 Male 40 Pins Automobile Connector ,Right Angle,Wire-to-Board

OEM Part Number	DRC23-40PA-N012
OEM Series	DRC SERIES
MinMax Part Number	1150000578
MinMax Family
Connection Type	Wire to Board
Number of Positions	040
Number of Rows	4
Hybrid	No
Contact Tab Size (mm)	1.5mm
Male/Female	Male
Sealable	Yes
Body Color	Black
Housing Material	PPF GF
Nominal Voltage Architecture (V)	24,48
Operating Temperature Range	–55℃~125℃
Certification	ISO9001, RoHS, REACH, TS16949

Overview

DRC series provide reliable waterproof connections for cable-to-cable applications across various environments, including engines, transmissions, chassis, under the hood, and within the cab.

Deutsch Features

✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2 and 4 cavity
✔High Current Capacity: 25A per contact with 12-gauge wires
✔Easy Installation:reduced assembly time
✔Environmental Seal:will handle extreme applications

Application

on the engine

On the Engine

on the transmissions

On the transmission

automotive under hood

Automotive Under the Hood

on the chassis

On the Chassis

in the cab

In the Cab

in the heavy duty

in the heavy duty
