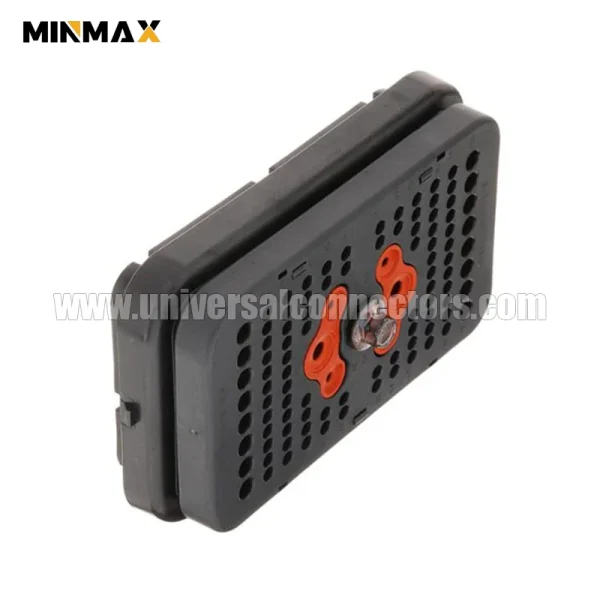

OEM Part Number |
DRB16-102SAE-L018 |
|
OEM Series |
AEC SERIES |
|
MinMax Part Number |
/ |
|
MinMax Family |
|
|
Connection Type |
Wire to Wire |
|
Number of Positions |
102 |
|
Number of Rows |
12 |
|
Hybrid |
No |
|
Contact Tab Size (mm) |
size 12 |
|
Male/Female |
Female |
|
Sealable |
Yes |
|
Body Color |
Black |
|
Housing Material |
PA GF |
|
Nominal Voltage Architecture (V) |
12/24/48 |
|
Operating Temperature Range |
–55℃~125℃ |
|
Certification |
ISO9001, RoHS, REACH, TS16949 |
The DRB Series connectors are heavy duty connectors ideal for bulkhead applications.
They are designed to accommodate multiple wire gauges and feature high pin counts, including 48, 60, 102, and 128 cavities.
To increase the design flexibility, the DRB Series offers several mounting flange options and wire arrangements.
The DRB Series is perfectly suited to on and off highway applications, marine, industrial, and agriculture markets in harsh environments.
✔Robust Metal Shell
✔Exceptional Environmental Sealing
✔High Vibration Resistance
✔Bayonet Coupling
✔Broad Temperature Range
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
