Deutsch Wire Harness Test
| Parameter | Description |
|---|---|
| Manufacturer | Minmax |
| Connections | 4 – per plug/socket pair |
| Wire Gauge | 18 AWG |
| Wire Length | |
| Current Rating | 13 A – per pin |
| Housing Material | Thermoplastic |
| Gasket and Insulating Material | Silicone |
| IP Rating | IP67 |
| Insulation | 1000 MOhm |
| Operating Temperature | -55 to 125 °C |
| Included |

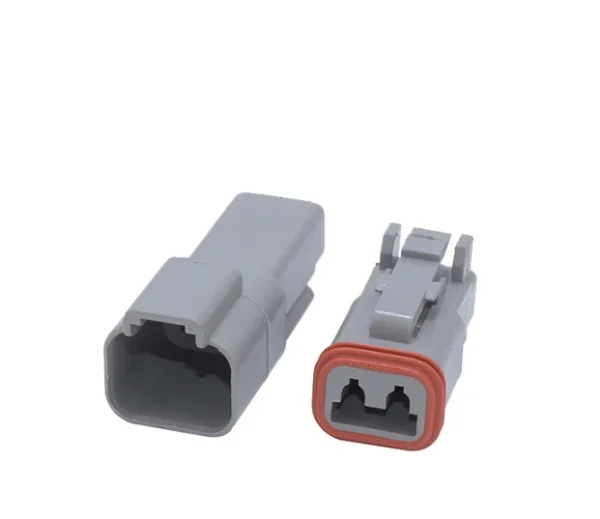

DT series provide reliable waterproof connections for cable-to-cable applications
across various environments, including engines, transmissions, chassis, under the hood, and within the cab.
Deutsch Features
✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity
✔High Current Capacity: 13A per contact with 16-gauge wires
✔Easy Installation:reduced assembly time
Deutsch Features
✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity
✔High Current Capacity: 13A per contact with 16-gauge wires
✔Easy Installation:reduced assembly time\
Deutsch Features
✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity
✔High Current Capacity: 13A per contact with 16-gauge wires
✔Easy Installation:reduced assembly time
Application
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
Our Workshop Overview
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
How to instructions
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
