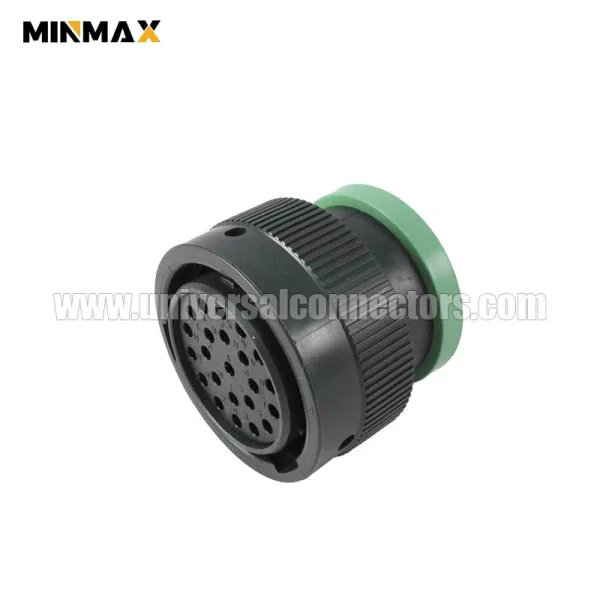

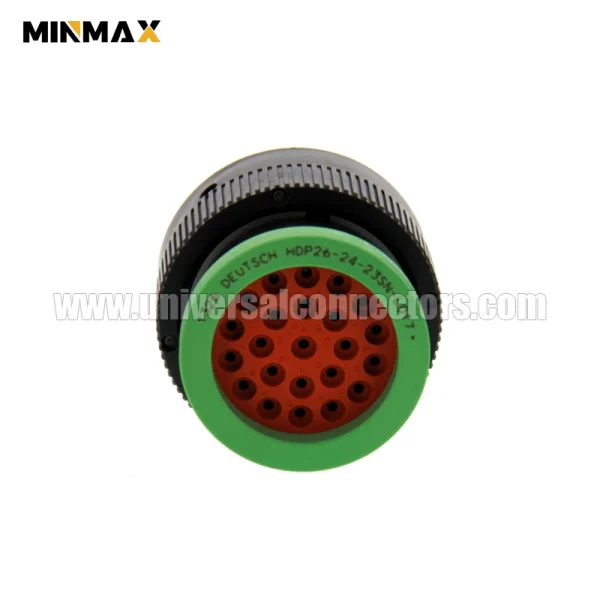

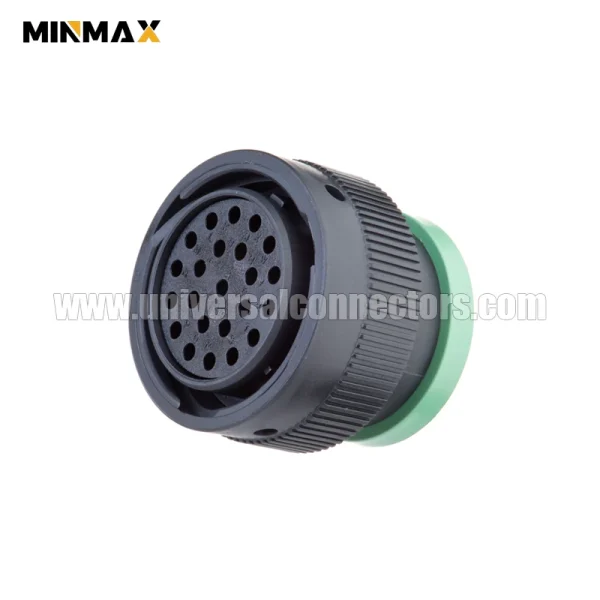

OEM Part Number |
HDP26-24-23SN-L017 |
|
OEM Series |
HDP20 CONNECTOR |
|
MinMax Part Number |
1150000827 |
|
Connection Type |
Wire to Wire, Wire to Board |
|
Number of Positions |
23 |
|
Number of Rows |
1 |
|
Hybrid |
Yes |
|
Contact Tab Size (mm) |
1 | 1.6 |
|
Male/Female |
Female |
|
Sealable |
Yes |
|
Body Color |
Black |
|
Housing Material |
Plastic: Flame-retardant nylon Ring plug: Silicone |
|
Nominal Voltage Architecture (V) |
12 | 24 | 48 |
|
Operating Temperature Range |
-55 – 125 °C |
|
Certification |
ISO9001, RoHS, REACH, TS16949 |
TE Connectivity’s DEUTSCH HDP20 series connectors are heavy-duty, environmentally sealed, multi-pin connectors with composite shells. Their composite thermoplastic shells are ideal for applications where chemical substances may cause damage to connector housings.
✔ Supports in-line, flange or PCB mounting
✔ Various pin configurations, including 2, 3, 4, 6, 8, 12 cavities
✔ Single contact with 16-gauge wire carries 13A, excellent performance
✔ Easy installation, reducing assembly time
✔Composite thermoplastic shell resists chemical erosion
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
