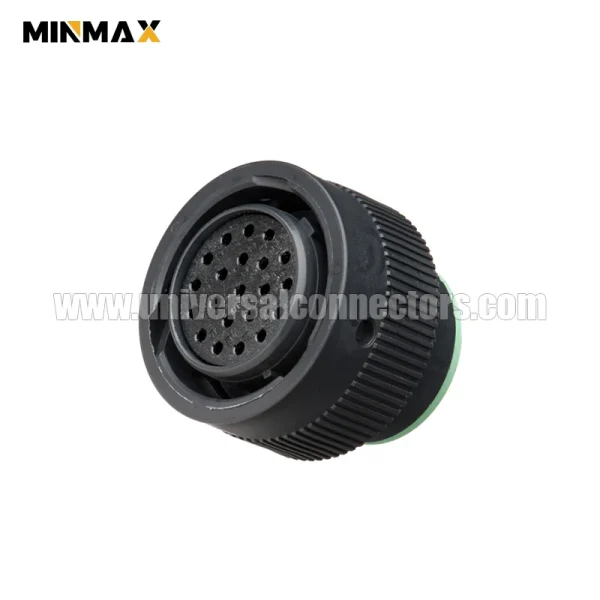

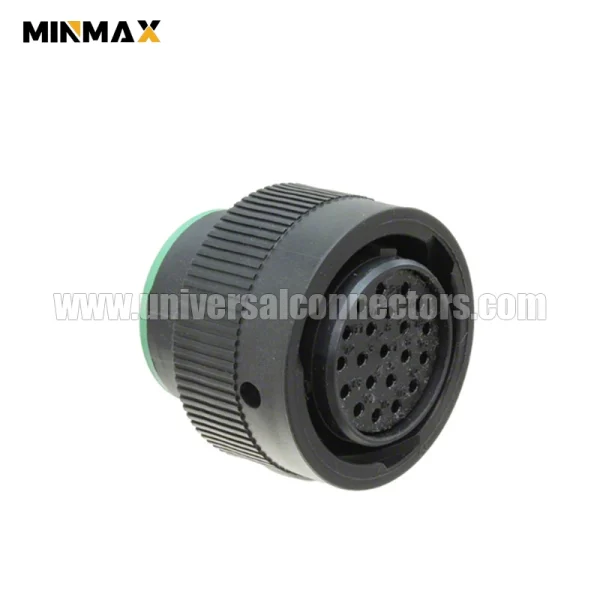

DEUTSCH HDP20 HDP26-18-21SN Female Wire-to-Panel, Sealable, Black 21 Pins Automotive Connector for PLC controller

OEM Part Number	HDP26-18-21SN
OEM Series	HDP20 CONNECTOR
MinMax Part Number	1121004033
Connection Type	Wire to Wire, Wire to Board
Number of Positions	21
Number of Rows	1
Hybrid	Yes
Contact Tab Size (mm)	1 \| 1.6
Male/Female	Female
Sealable	Yes
Body Color	Black
Housing Material	Plastic: Flame-retardant nylon Ring plug: Silicone
Nominal Voltage Architecture (V)	12 \| 24 \| 48
Operating Temperature Range	-55 – 125 °C
Certification	ISO9001, RoHS, REACH, TS16949

Overview

TE Connectivity’s DEUTSCH HDP20 series connectors are heavy-duty, environmentally sealed, multi-pin connectors with composite shells. Their composite thermoplastic shells are ideal for applications where chemical substances may cause damage to connector housings.

Deutsch Features

✔ Supports in-line, flange or PCB mounting
✔ Various pin configurations, including 2, 3, 4, 6, 8, 12 cavities
✔ Single contact with 16-gauge wire carries 13A, excellent performance
✔ Easy installation, reducing assembly time
✔Composite thermoplastic shell resists chemical erosion

Application

on the engine

On the Engine

on the transmissions

On the transmission

automotive under hood

Automotive Under the Hood

on the chassis

On the Chassis

in the cab

In the Cab

in the heavy duty

in the heavy duty

Our Workshop Overview

edm mirror processing

EDM Mirror Processing

edm parts

EDM Parts

slow feeding wire cut machine

Slow-feeding wire cut machine

cnc machine

CNC Machine

plastic injection machine

Plastic Injection Machine

automatic production line

Automatic production Line

How to instructions

dt04 3p male 3 pins gray dt auto connector

Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed

dt04 3p male 3 pins gray dt auto connector

step 2 Crimping terminal and matched connector

dt04 3p male 3 pins gray dt auto connector

Step 3 Insert the terminal to the connectors

dt04 3p male 3 pins gray dt auto connector

Step 4 finished the connecting.
