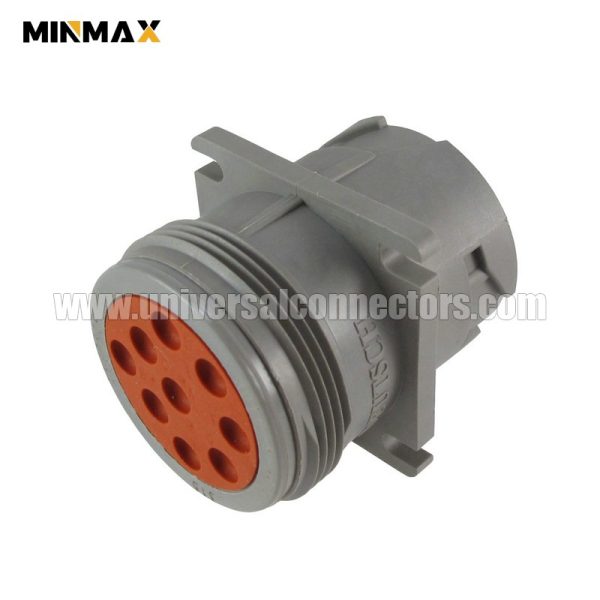

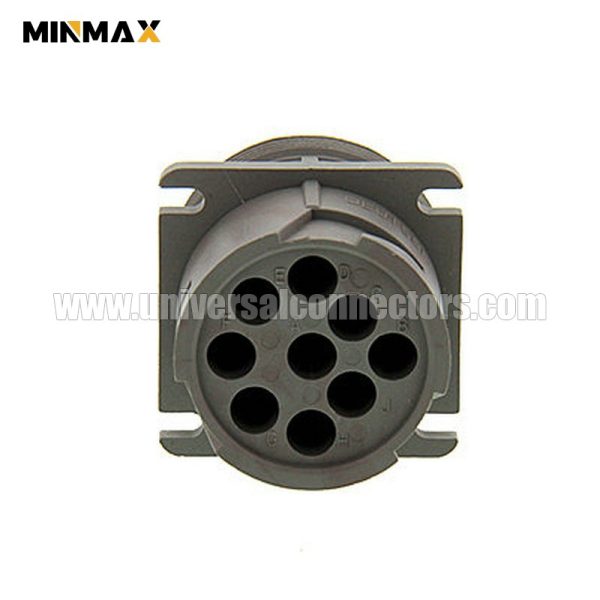

Deutsch HD 10 serie HD10-9-96P Male Wire-to-Panel, Sealable, Gray 9 Pins Wire Cable Plug for windpower system



OEM Part Number

HD10-9-96P

OEM Series

DEUTSCH HD10

MinMax Part Number

 1150000511

Delivery Time

Enough stock and strong production capacity ensure timely delivery.

Male/Female

Male

Sealable

Sealed

Body Color

Gray

Housing Material

Housing:PBT+G,PA66+GF

MOQ

For product in stock, small order can be accepted. For product run out of stock, depends on different situation, please send enquiry.

Operating Temperature Range

-40℃~120℃

Packaging

100,200,300,500,1000PCS per bag with label,export standard carton.

Cavities

9

Design Ability

We can supply sample, OEM&ODM is welcome. Customized drawing with Decal, Frosted, Print are available as request

Certification

TUV,T S16949,ISO14001 system and RoHS.









Overview

The Deutsch HD10 Series is a compact, high-performance connector designed for space-constrained applications with strict reliability requirements. It is commonly used in control systems, sensor connections, and auxiliary equipment of heavy-duty vehicles, enabling stable connections in confined spaces such as around engines.



Deutsch Features



✔ Compact Design: Smaller form factor for space-constrained applications
✔ Pin Configurations: 2 to 12 cavity options
✔ Current Handling: Up to 13A per contact (with 16-gauge wires)
✔ Easy Installation: Tool-less assembly for reduced installation time
✔ Environmental Resistance: IP67 sealing, operable in -55°C to +125°C with resistance to fuels and lubricants




Application

on the engine

On the Engine

on the transmissions

On the transmission

automotive under hood

Automotive Under the Hood

on the chassis

On the Chassis

in the cab

In the Cab

in the heavy duty

in the heavy duty

Our Workshop Overview

edm mirror processing

EDM Mirror Processing

edm parts

 EDM Parts

slow feeding wire cut machine

Slow-feeding wire cut machine

cnc machine

CNC Machine

plastic injection machine

  Plastic Injection Machine

 automatic production line

Automatic production Line

How to instructions

dt04 3p male 3 pins gray dt auto connector

Step 1  Crimp the terminal and do the pull-out test to make sure the crimpings are completed

dt04 3p male 3 pins gray dt auto connector

step 2 Crimping terminal and matched connector

dt04 3p male 3 pins gray dt auto connector

Step 3  Insert the terminal to the connectors

dt04 3p male 3 pins gray dt auto connector

Step 4 finished the connecting.
