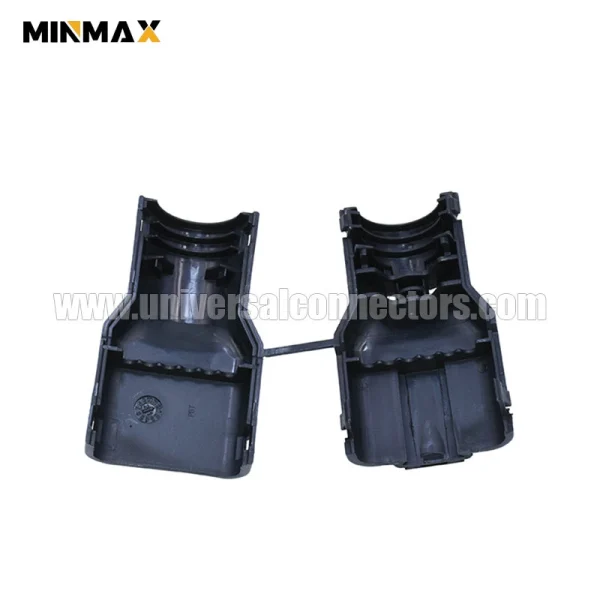

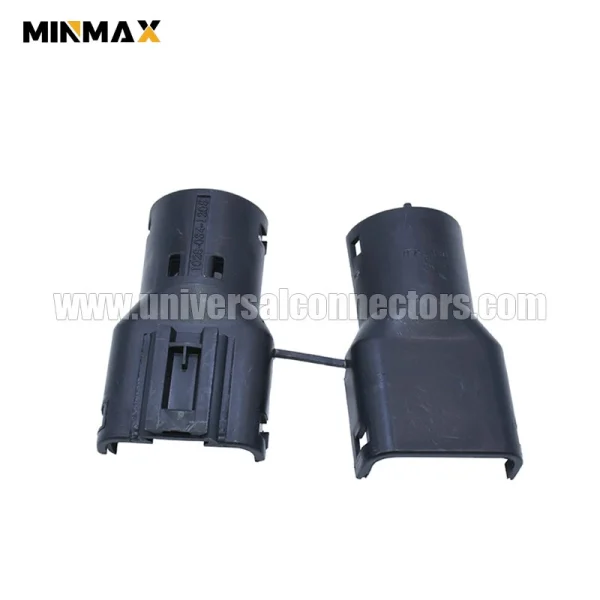

OEM Part Number |
1028-034-1205 |
|
OEM Series |
DEUTSCH DT |
|
MinMax Part Number |
1950000086 |
|
MinMax Family |
/ |
|
Connection Type |
/ |
|
Number of Positions |
/ |
|
Number of Rows |
/ |
|
Hybrid |
No |
|
Contact Tab Size (mm) |
/ |
|
Male/Female |
Male |
|
Sealable |
No |
|
Body Color |
Black |
|
Housing Material |
PBT |
|
Nominal Voltage Architecture (V) |
/ |
|
Operating Temperature Range |
–55℃~125℃ |
|
Certification |
ISO9001, RoHS, REACH, TS16949 |
DT series provide reliable waterproof connections for cable-to-cable applications across various environments, including engines, transmissions, chassis, under the hood, and within the cab.
✔In line, flange, or PCB mount
✔Multiple Pin Configurations:2.3,4.6,8 and 12 cavity
✔High Current Capacity: 13A per contact with 16-gauge wires
✔Easy Installation:reduced assembly time
✔Environmental Seal:will handle extreme applications
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
