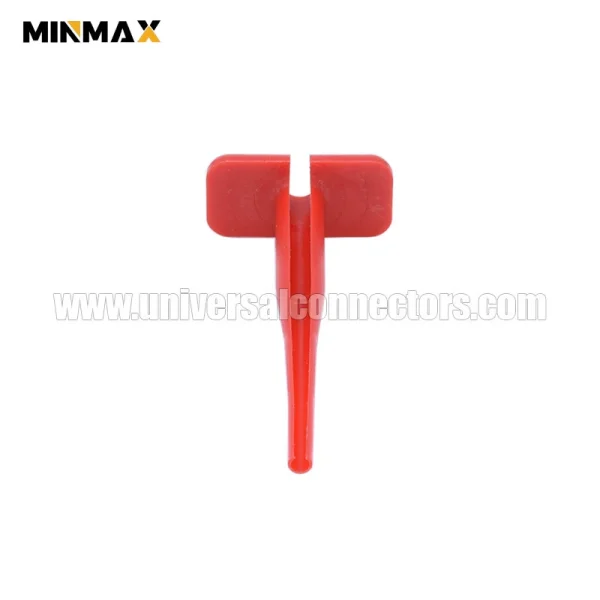

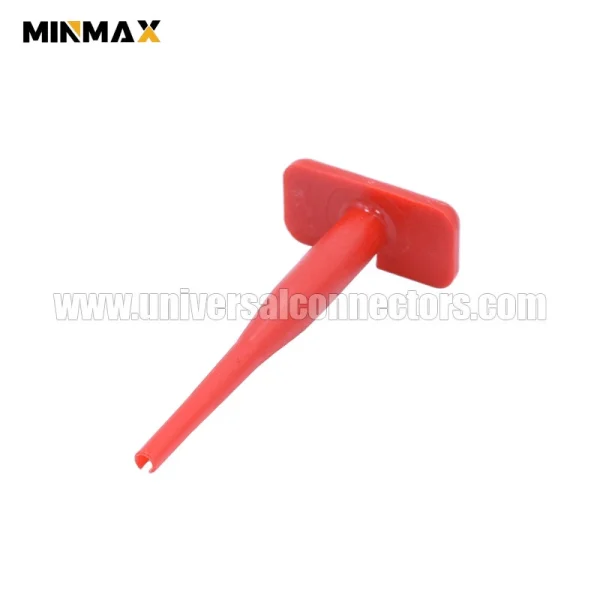

OEM Part Number |
0411-240-2005 |
|
OEM Series |
DEUTSCH HD30 |
|
MinMax Part Number |
1760000002 |
|
MinMax Family |
/ |
|
Connection Type |
/ |
|
Number of Positions |
/ |
|
Number of Rows |
/ |
|
Hybrid |
No |
|
Contact Tab Size (mm) |
/ |
|
Male/Female |
/ |
|
Sealable |
No |
|
Body Color |
Red |
|
Housing Material |
Plastic |
|
Nominal Voltage Architecture (V) |
/ |
|
Operating Temperature Range |
/ |
|
Certification |
ISO9001, RoHS, REACH, TS16949 |
DEUTSCH offers two contact types: solid and stamped & formed, both for crimp termination (no soldering needed/recommended).Crimping displaces wire strands for a superior wire-contact bond.Available tools (for hand/production crimping, wire insertion/removal, wedgelock removal) are specific to each contact type.Recommended tools are required for proper crimping and optimal performance.
✔Compatible with two types of DEUTSCH contacts: solid and stamped & formed.
✔Designed for crimp termination (no soldering needed/recommended); crimping displaces wire strands for a superior wire-contact bond.
✔Includes tools for hand/production wire crimping, insertion/removal, and wedgelock/terminal position assurance removal.
✔Tools are specific to solid or stamped & formed contacts (dedicated use).
✔Recommended tools must be used to ensure crimp quality and performance.
On the Engine
On the transmission
Automotive Under the Hood
On the Chassis
In the Cab
in the heavy duty
EDM Mirror Processing
EDM Parts
Slow-feeding wire cut machine
CNC Machine
Plastic Injection Machine
Automatic production Line
Step 1 Crimp the terminal and do the pull-out test to make sure the crimpings are completed
step 2 Crimping terminal and matched connector
Step 3 Insert the terminal to the connectors
Step 4 finished the connecting.
